HT 45 SM2Y, godina proizvodnje 2018 (direktna prodaja od kupca)

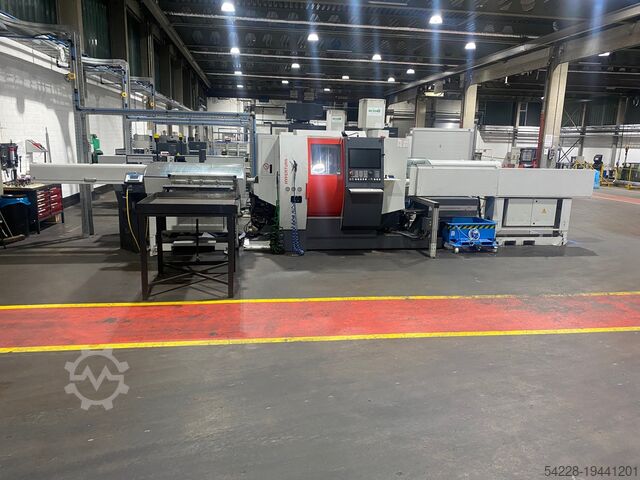

EMCO Hyperturn 45 SM2Y, Bj. 2018

HT 45 SM2Y / SIEMENS
- with driven tools + Y-axis
CNC turning machine for complete machining of turned/milled components with
2 spindles, 2 tool systems,
6 linear axes and 2 rotary axes,
integrated spindle motors on the main and sub-spindle (water-cooled),
preloaded roller guides.
Drive power:
Main spindle - 15 kW
Sub-spindle - 15 kW
Lredewvlvvepfx Ag Ioi
Speed range:
Main spindle 0 - 7,000 rpm
Sub-spindle 0 - 7,000 rpm
Spindle connection (DIN 55026):
Main spindle: KK 5
(max. bar capacity Ø 45mm)
Sub-spindle: KK5
Y-axis:
• Travel range: +40/-30mm
• Rapid traverse: 15m/min
Includes:
• Hollow clamping cylinder on the main spindle
• Draw tube for main and sub-spindle
• Mechanical spindle brake
(main/sub-spindle)
• Part ejector and flushing through
the sub-spindle
• Sinumerik 840D-sl / OPERATE control
o SHOPTURN dialog programming
o USB interface
o Network drive / Ethernet
o 15" TFT color monitor
o 3D simulation
o and much more
• 2x 12-station tool turrets VDI 25
radial version with directional logic for up to
2x 12 driven tool stations!
Swivel speed adjustable via feed switch!
Performance data:
o Max. 4kW at 2080 rpm
o Constant torque 16 Nm
o Speed range 0-6000 rpm
o C-axis for main and sub-spindle
o TRANSMIT software for easy
C-axis programming
• Chip conveyor with programmable
ejection height of 1100mm
(Type "hinged belt")
• Coolant system integrated into
chip conveyor
2 pcs. high-pressure pumps, 14 bar each
2 pcs. flushing pumps, 3.7 bar each
• Hydraulic unit
• Machine light
• Documentation
Includes:
DE6400 1 pc Control language German
S3Z580 1 pc 22-inch multitouch operating unit HT45
X3Z160 1 pc Tool monitoring Siem. 840Dsl
X3Z690 1 pc SHOPTURN/MILL expansion kit 840DSL/828D
X3Z710 1 pc 4-axis turning/balance 840DSL/828
S3Z20S 1 pc Glass scale X1 SIEMENS
S3Z21S 1 pc Glass scale Y1 SIEMENS
S3Z23S 1 pc Glass scale X2 SIEMENS
X1Z140 1 pc Loader interface A8, S2, S3, S4, S6, R2, R6, R9PM
S30593 1 pc Surcharge for flat chip conveyor
S3Z610 1 pc Tool measurement HT45
S4Z140 1 pc Coolant gun
S3Z160 1 pc Cooling unit HT45
S3Z010 1 pc Oil mist separator MT45/HT45/E45
S3Y300 1 pc Band filter 600l+conveyor HT45
S30605 1 pc Preparation HT45 sub-spindle unloading
S30595 1 pc Robot interface HT45
S30596 1 pc Interface to measuring station
S30597 1 pc Interface for unloading unit
S30598 1 pc Wireless measuring probe Renishaw
S30599 1 pc Tool layout by Emco
990717 1 pc Loading system IRCO ILS-RBL-8008
990718 1 pc Unloading system IRCO ILS-REX-8008
.....
Year: 2018
Machine No. S3A182001
