Hidraulična portalna presa za ispravljanje

Hidrobrasil 200 T Portal-Richtpresse

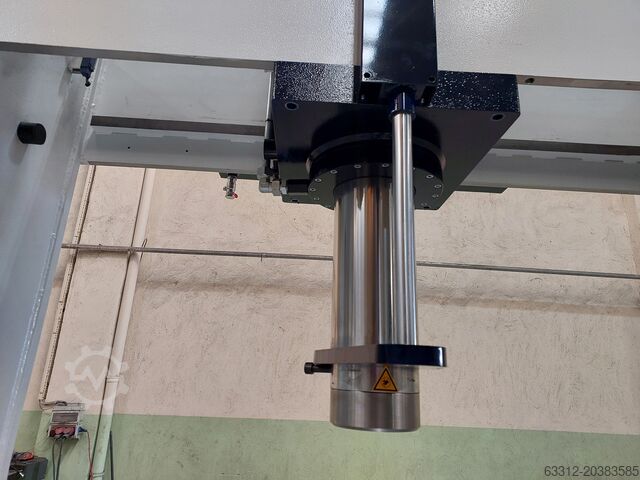

Main Cylinder Press Capacity: 200 T
- Maximum working pressure: 285 bar
- Cylinder stroke: 1500 mm
- Clear width / clear height: 1500 mm
- Distance between columns: 2050 mm

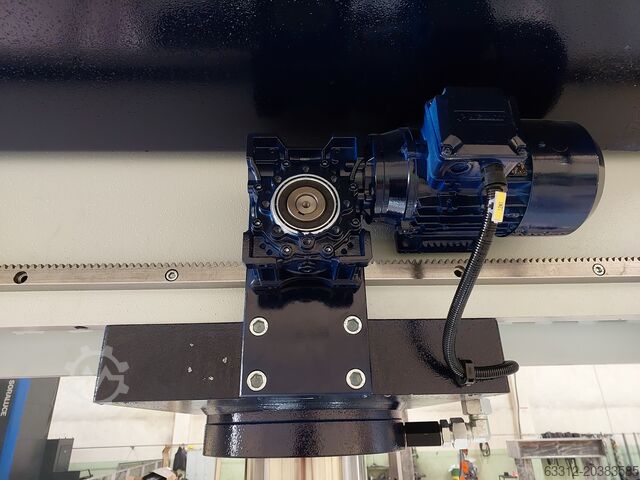

- Maximum lateral cylinder displacement: 1450 mm
- Maximum longitudinal frame displacement: 2800 mm
- Table plate dimensions: 4000 x 2000 mm
- Hydraulic power unit output: 5.5 kW
- Approach speed: 20 mm/s
- Working speed: 2 mm/s
- Hydraulic oil is not included in the delivery scope
- Hydraulic power packs are mounted on top of the press
- Hydraulic manifold and valves by Rexroth
- Air filter brand: FILTREC
- Oil filter brand: FILTREC
- Hydraulic cooling by air and water cooler
- Stroke cylinders integrated into the working table

Rod diameter: 25 mm
- Stroke: 80 mm
- Control via cylinder control system or hydraulic power unit with manual lever control
- 10 stroke cylinders installed
- Digital control with stroke measurement via encoder and pressure measurement with digital readout
- Siemens KTP 900 – 9" touchscreen for programming (up to 99 programs):
- Maximum up and down stroke of the cylinder
- Pressure holding time at the lower table
- Decompression time
- Working pressure setting
- Piece counter
- Pre-stop up/down stroke with accuracy of 0.1 mm
- Alarm management
- Frame-mounted display for real-time operating parameter monitoring
- Wireless remote control with two buttons for simultaneous operation
- Control cabinet with Siemens CPU
- Hydraulic power pack with solenoid valves (replaces pendant control panel)
- Air/oil heat exchanger with decompression valve

5. ELECTRICAL INSTALLATION AND SAFETY
- PLC system by SIEMENS (S7-1200 series)
- Siemens LCD touchscreen (9") MTP900 fitted in the control cabinet
- Electrical components from SIEMENS, ALLEN BRADLEY and PHOENIX
- System pressure of the pressure cylinder adjustable via LCD touchscreen
- Operating mode (semi-automatic and automatic), power, vertical stroke, and dwell time of the upper cylinder are programmable
- 99 recipes storable; all aforementioned values can be programmed per recipe
- Activation via wireless remote
- Dual button for slow/fast up and down movement, emergency stop, and movement confirmation
- Touch-sensitive safety strip mounted at the bottom of portal columns for safety
- Control cabinet mounted to bridge sidewall
- Anti-rotation device for the cylinder
- Oil temperature displayed on LCD touchscreen
- Overheat warning for hydraulic oil displayed on LCD touchscreen
- Filter contamination status displayed on LCD screen
- System faults displayed on LCD touchscreen
- Pressing status information displayed on LCD display
Nledpexrb Nbsfx Aflsh
- Once oil temperature reaches 45°C, the air cooler begins operating to cool the oil. If 65°C is reached, the machine stops operation until it cools back to operating temperature.
- Operating manual included
- System complies with all essential safety and health requirements according to CE regulations.
