CNC glodalica za struganje i glodanje

INDEX G400

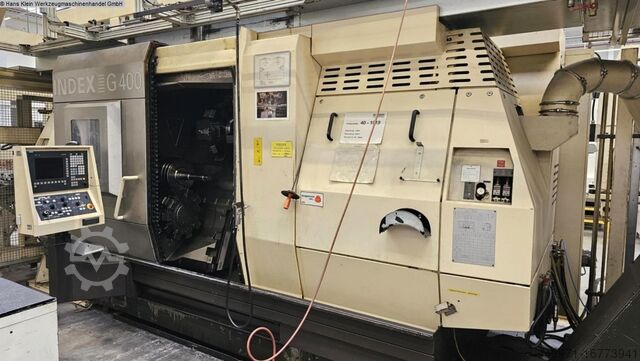

Universal CNC Lathe Milling Machine INDEX G 400 RATIO Line

Manufacturer: INDEX
Universal CNC Lathe INDEX G 400 RATIO Line

Manufacturer: INDEX
Type: G 400
Control unit: Siemens C200-4D incl. milling of cylindrical surfaces
Incl. handwheel
Year of manufacture: 10/2004

Turning length: 1250 mm
Main spindle D102 with swing gearbox 1700 Nm
Size: 11
Hollow clamping cylinder: 102 mm
Iedpfx Aaewrrmgefoik
ARB-SPI ALIGNMENT AND SWITCHING DEVICE

TOOL CARRIER 1 COMPLETE, AXES X, Y, Z, B with turning/milling operation

Turret VDI40, 10 stations
MILLING SPINDLE HSK A63
Tool carrier axes: 2 (X, Z)
Turret VDI40, 10 stations
SUB-SPINDLE D102, DIRECT DRIVE, 1300 Nm
Size: 11
Hollow clamping cylinder: 102 mm
ARB-SPI ALIGNMENT AND SWITCHING DEVICE
DISC MAGAZINE LEFT AT SWING GEARBOX HSK63 with 32 tool holders
DISC MAGAZINE RIGHT COMPLETE WITH 32 TOOL HOLDERS HSK 63A
Axis travel range: X = 320 mm, Z = 1250 mm
Axis measuring system X-axis glass scale (absolute)
Feed
Turret with 12 stations
Disc magazine on left and right, each with max. 32 tool holders
Y-quill hydrostatically mounted
Internal coolant supply IKZ
Feed force: 14,000 N
Spindle speed: 30-3000 rpm
Front bearing diameter: 170 mm
Spindle bore: 102 mm

Work table: L = 1800 mm, W = 500 mm
Spindle: swiveling +-90˚
Feed speed: 10-4000 mm/min
Tool holder: HSK A63 multi-function unit as per DIN69880-40x63

Chip conveyor Knoll / coolant tank and pumps (year of manufacture 2020) with fine filtration
Comprehensive technical documentation / detailed documents available

Weight: 20,000 kg
Dimensions (LxWxH) approx.: 5500 x 3000 x 2500 mm

The machine is equipped with further important special features.

Inspection under power is possible at short notice.
For further questions, feel free to contact us.
Price, ex stock here plus VAT.
Condition: good – ready for demonstration
Delivery: ex stock – as inspected
Payment: strictly net – upon receipt of invoice
Subject to prior sale and error.
We appreciate your order. Further machines and systems available ex stock – Please enquire. We look forward to your enquiry.
