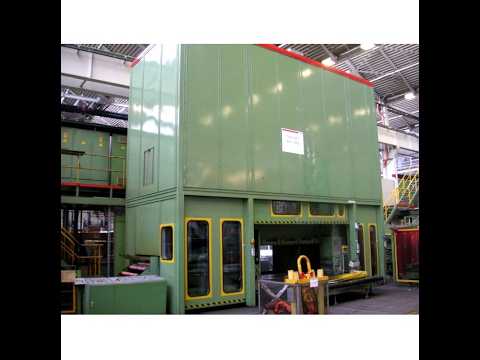

Dvostupna presa - hidraulična

SMG DS 800 S

pressure 800 t
distance between columns 3010 mm
stroke 300 mm
Knjdpsvuk Ipefx Aadsc
distance table/ram, max. stroke up, adjustment up 1350 mm
table surface area 3000 x 1800 mm
table height over floor 500 mm
side window 1500 x 1400 mm
ram surface 3000 x 1800 mm
speed down 300 mm/s
oil volume 900 l
height over floor 5,4 m
height beneath floor 2,1 m
power requirement 200,0 kW
weight 80,0 t
Dimensions (WxDxH) 5,2 x 2,6 x 7,5 m
hydraulic high-speed press
with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic cutting impact cushioning, mechanical depth stop (motoric adjustable), ram interlocking in upper position
maximum stroke frequency 50/min (when using automatic feeding devices)
as is where is, WITHOUT putting into operation, stored in dismantled condition
