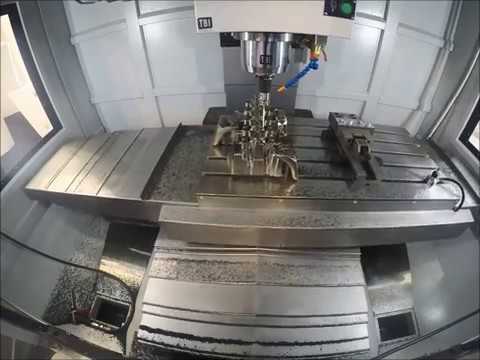

TBI VC 1060 Smart Mill New Line – Vertical CNC Machining Center

We have for sale a vertical CNC machining center, the TBI VC 1060 Smart Mill New Line, equipped with a Siemens 828D + ShopMill control system and a 15-inch touch panel.

The machine features an SK40 spindle up to 10,000 rpm, a 24-position tool magazine with a fast, dual-arm tool changer, and digital axis drives. Linear guides in the X/Y/Z axes provide rapid traverse rates up to 36 m/min.

Key technical data:
- Control system: Siemens 828D + ShopMill
- Operator panel: 15" touch panel
- X-axis travel: 1000 mm
Crsdez Iymzjpfx Al Aeh
- Y-axis travel: 600 mm
- Z-axis travel: 650 mm
- Table surface: 1100 × 500 mm
- Max. table load: 1000 kg
- T-slots: 5 × 18 × 100 mm
- Spindle nose to table distance: 140–790 mm
- Spindle taper: SK40
- Max. spindle speed: 10,000 rpm
- Spindle drive power S1/S6: 11/23 kW
- Spindle drive: AC, belt drive
- Rapid traverse X/Y/Z: 36/36/36 m/min
- Positioning accuracy: ±0.005 mm
- Positioning repeatability: ±0.003 mm

Tool magazine
- Type: drum type
- Number of positions: 24
- Tool changer: fast, dual-arm
- Max. tool diameter: 80 mm
- Max. diameter with free adjacent position: 150 mm
- Max. tool length: 300 mm
- Max. tool weight: 7 kg
Equipment
- Siemens 828D + ShopMill control system with 15" touch panel
- Threading without a compensating chuck
- Spindle-through coolant at 20 bar
- Spindle temperature stabilization
- Spindle air blow system
- Tool cooling with air and coolant
- Linear roller guides for X/Y/Z axes
- Telescopic guides for X/Y/Z axes
- Pneumatic counterbalancing for the Z-axis
- Digital axis drives
- Oil skimmer
- Data transmission V.24 / RS232-C / USB
- Manual spray guns for rinsing the work area
- Electrical cabinet cooling
- Central lubrication system
- Lower chip flushing system
- Integrated chip conveyor with cart

Cooling system
- Tank capacity: 300 l
- Flow rate: 200 l/min
- Spindle-through cooling: 20 bar

Dimensions and weight
- Machine dimensions (L × W × H): 2900 × 2100 × 2800 mm
- Weight: 6800 kg
- Total power consumption: 35 kVA

Year of manufacture: 2020
Location: Krakow
Price: 45,000 EUR

The machine is available for sale. Additional photos, technical documentation, and detailed information regarding equipment and terms of sale can be provided.
