Linija za blanjanje Weinig Unimat + Uniplan

Weinig Unimat + Uniplan

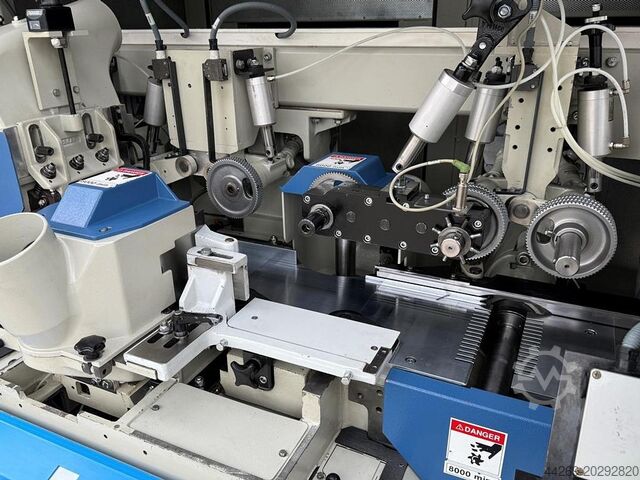

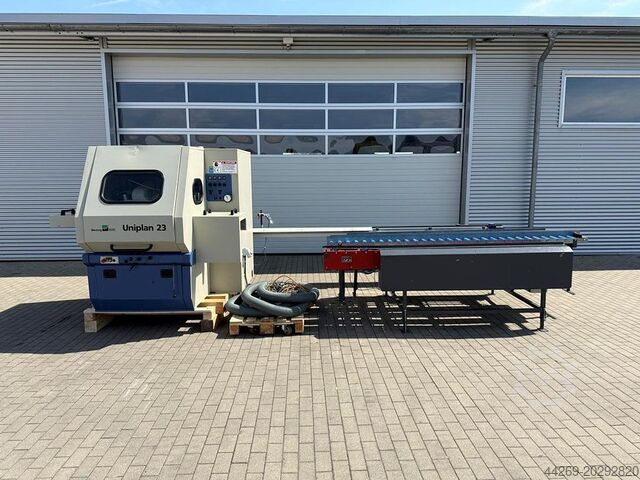

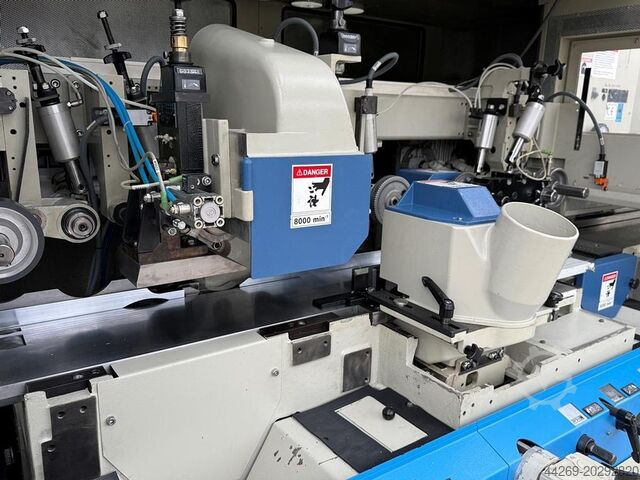

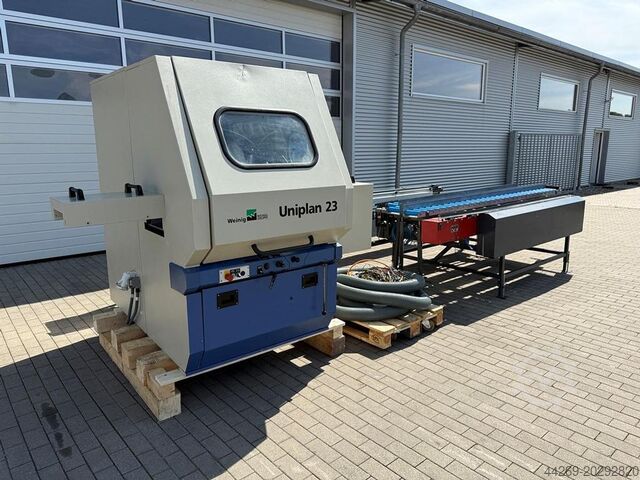

Weinig Unimat 23 E + Uniplan 23 planing line, including a return conveyor. An NC-controlled line for planing and profiling window scantlings, including glazing bead removal or other planing tasks, with automatic workpiece return to the operator.
spindles: 4 + 2
working width: 230 mm
working height: 120 mm

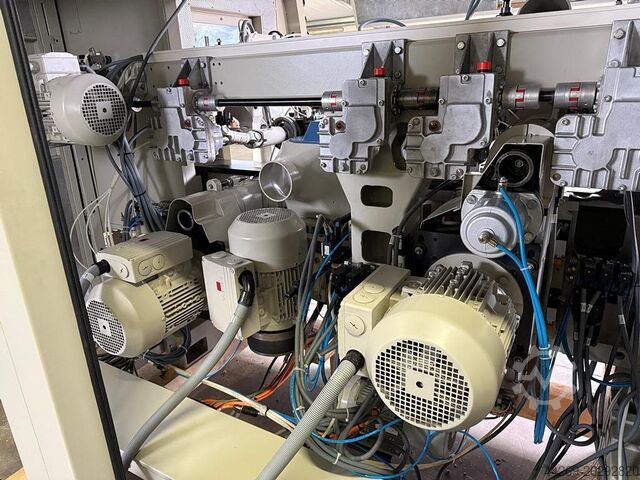

spindle 1: 7.5 kW / 50 mm / 8,000 rpm
spindle 2: 11 kW / 50 mm / 8,000 rpm
spindle 3: Common motor with spindle 2 / 50 mm / 8,000 rpm
spindle 4: 7.5 kW / 50 mm / 8,000 rpm
Spindle 1 Uniplan: 5.5 kW / 50 mm / 7,200 rpm
Spindle 2 Uniplan: 5.5 kW / 50 mm / 7,200 rpm
feed: 5-24 m/min
service: PC Control Nexus
NC axes: Unimat 2 & 3, Uniplan 1
