Mješalica za gumu i plastiku XK400×1000

Wuxi Double Elephant Rubber & Plastics M XK400×1000

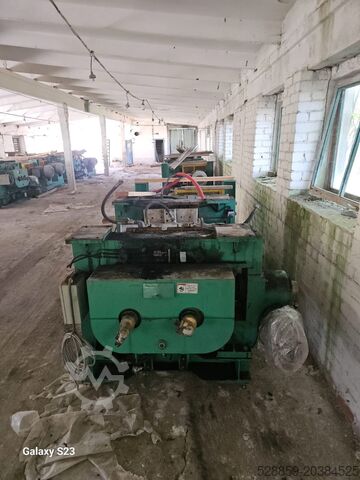

XK400×1000 Rubber & Plastic Mixing Mill – High-Performance Two-Roll Mill

Manufacturer: Wuxi Double Elephant Rubber & Plastics Machinery Co., Ltd.
Model: XK400×1000

Main Technical Data:

Lodpfx Agoxrc Eqe Iori
Roll diameter: 400 mm
Working length: 1000 mm
Front roll speed: 14.85 m/min
Rear roll speed: 18.85 m/min
Speed ratio: 1 : 1.27
Max roll gap: 10 mm
Batch capacity: 25–35 kg
Motor power: 37 kW (Siemens IE3 motor)
Control system: Siemens S7-300 PLC with Profibus
Length: 4400 mm
Width: 1710 mm
Height: 1850 mm
Weight: ~8500 kg

Description:

The XK400×1000 Mixing Mill is a heavy-duty two-roll open mill designed for rubber and plastic compound mixing, warming, and sheeting.
Built with precision alloy rolls, Siemens electrical control, and a robust gear transmission system, this machine ensures stable, low-noise operation, high efficiency, and long service life — perfect for industrial rubber production, laboratories, and plastic processing plants.

Key Features:

Alloy chilled cast iron rolls – HS70±2 hardness for long life
Water-cooled drilled rolls with rotary joints for temperature control
Low-noise gear drive with hardened gears
Motorized roll gap adjustment (0.5–10 mm)
Forced thin-oil lubrication system
4 emergency stop buttons for operator safety
Premium Siemens control & electrical components

Applications:

Rubber compounding and mixing
Sheet forming for rubber and plastics
Hose, seal, and belt production
