Yaskawa robotska ćelija za zavarivanje RWC L1_OS 15330

Yaskawa Robotic Welding Cell RWC L1_OS 15330

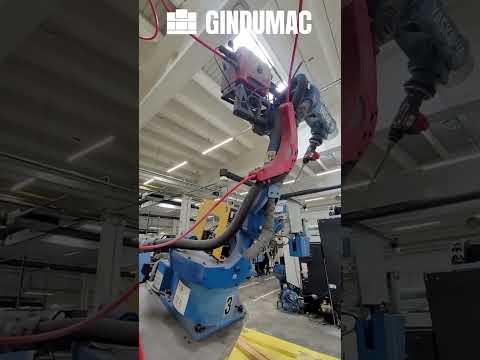

Welding robot manufactured in 2021. This Yaskawa Robotic Welding Cell RWC L1_OS 15330 features a robust configuration with multiple Yaskawa Motoman robots and advanced welding equipment. It includes a maximum reach of 2,010 mm and a payload capacity of 10 kg. If you are looking to get high-quality welding capabilities, consider the Yaskawa Robotic Welding Cell RWC L1_OS 15330 we have for sale. Contact us for further details.

• Power supply: 400 V / 50 Hz
• Rated power: 70 kVA
• Main fuses: 3 × 100 A
• Compressed air supply: 6 bar

Additional equipment

• Robots:
• 2× Yaskawa Motoman MA2010 (6 axes; max. reach 2,010 mm; payload 10 kg; repeatability ±0.08 mm)
• 2× Yaskawa Motoman MA1440 (6 axes; max. reach 1,440 mm; payload 6 kg; repeatability ±0.08 mm)
• Robot controller:
• Yaskawa DX200 multi-robot controller
• Positioner:
• Yaskawa RWV2-M2-1500-2500-1850 (max. payload 1,500 kg; distance between mounting plates 2,500 mm; swing diameter 1,850 mm; 3 external robot axes; weight approx. 3,400 kg)
• Welding equipment:
• 4× Fronius TPS400i welding power sources
Dedpfx Aoz N Hrbecisku
• 4× Fronius WF 25i wire feeders
• 4× Fronius CU 1400 cooling units
• 4× Fronius welding torches
• 3× Abicor Binzel automatic torch cleaning units
• 3× Q-Set automatic torch calibration systems
