Mašina koja toneZimmer & Kreim
ZK 1200 Pocon 60
Mašina koja tone
Zimmer & Kreim
ZK 1200 Pocon 60
VB plus PDV
10.000 €
godina proizvodnje
2001
Stanje
Polovno
Lokacija
Lohne (Oldenburg)

Slike prikazuju
Prikaži kartu
Podaci o mašini
- Naziv mašine:
- Mašina koja tone
- proizvođač:
- Zimmer & Kreim
- Model:
- ZK 1200 Pocon 60
- Broj mašine:
- 5.3049
- godina proizvodnje:
- 2001
- Stanje:
- polovno
- funkcionalnost:
- ograničena funkcionalnost
- Radni sati:
- 35.973 h
Cijena i lokacija
VB plus PDV
10.000 €
- Lokacija:
- Gewerbering 17, 49393 Lohne (Oldenburg), DE

Pozovite
Tehnički detalji
- Udaljenost hoda X-osi:
- 825 mm
- Y osi hod:
- 680 mm
- Udaljenost hoda Z-osi:
- 405 mm
- Maksimalna težina obratka:
- 2.500 kg
- Ukupna visina:
- 2.760 mm
- Ukupna širina:
- 1.500 mm
- Ukupna dužina:
- 2.200 mm
- Širina stola:
- 850 mm
- Dužina stola:
- 1.200 mm
- Duljina radnog komada (maks.):
- 1.150 mm
- Širina radnog komada (maks.):
- 800 mm
- Duljina upravljačkog ormara:
- 600 mm
- Širina upravljačkog ormara:
- 920 mm
- Visina upravljačkog ormara:
- 1.960 mm
- Ulazni napon:
- 380 V
- Ukupna masa:
- 4.500 kg
- Kapacitet rezervoara:
- 900 l
- Oprema:
- dokumentacija / priručnik
Detalji ponude
- ID oglasa:
- A20384130
- ažuriranje:
- posljednji put 27.10.2025
Opis

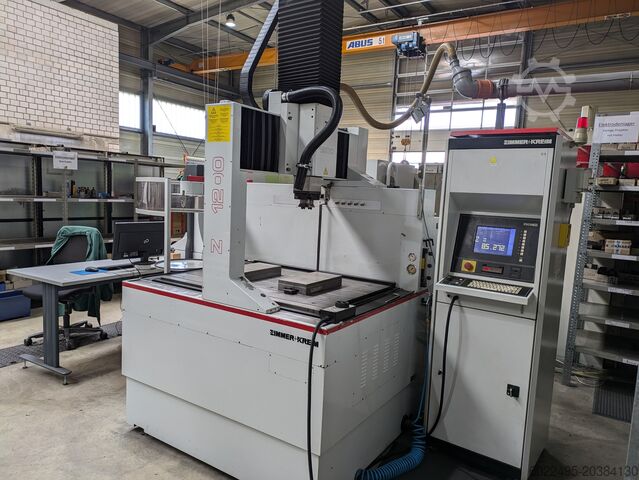

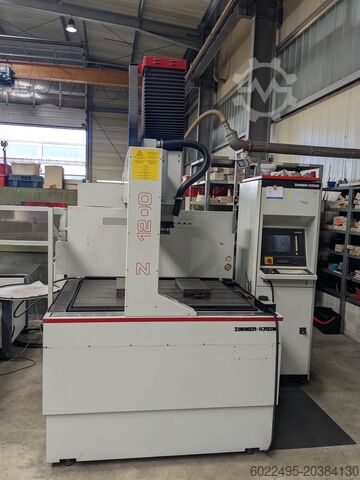

Zimmer & Kreim ZK 1200 – Die-Sinking EDM Machine (used, disassembled)
For sale is a used Zimmer & Kreim ZK 1200 die-sinking EDM machine.
The machine was fully operational until it was disassembled and is currently stored in a disassembled state.
The included electrode changer is defective.
Also included in the scope of delivery are a CO₂ fire suppression system by Kraft & Bauer and a cooler.
Technical Data
Machine:
Dimensions (H x W x D): 2760 x 1500 x 2200 mm
Weight: 4,500 kg (without dielectric)
Worktable:
Table size: 1200 x 850 mm
Dielectric above table: 410 mm
Max. workpiece weight: 3,000 kg
T-slots: 4 x 12 mm
Distance table–spindle (max./min.): 650 / 235 mm
Slide Head:
Travel (X/Y/Z): 900 / 680 / 415 mm
Resolution X–Y–Z: 0.001 mm
Resolution C: 0.001°
Rapid traverse speed: 2,000 mm/min
Electrode weight without rotation: 100 kg
Electrode weight with rotation: 15 kg
Dielectric System:
Capacity: 800 liters
Paper candle filters: 4 pcs
Generator (mobile):
Dimensions (H x W x D): 1960 x 600 x 920 mm
Weight: 300 kg
Rated current: 60 Amp
Connected load: 15 kVA
Also included:
CO₂ fire suppression system by Kraft & Bauer
Cooler
Condition
Used, well-maintained
Njdpexrcpcsfx Aflelh
Machine is disassembled
Electrode changer defective
Machine was operational until disassembly
Machine must be loaded and collected in 49393 Lohne.
Oglas je automatski preveden. Moguće su greške u prijevodu.
For sale is a used Zimmer & Kreim ZK 1200 die-sinking EDM machine.
The machine was fully operational until it was disassembled and is currently stored in a disassembled state.
The included electrode changer is defective.
Also included in the scope of delivery are a CO₂ fire suppression system by Kraft & Bauer and a cooler.
Technical Data
Machine:
Dimensions (H x W x D): 2760 x 1500 x 2200 mm
Weight: 4,500 kg (without dielectric)
Worktable:
Table size: 1200 x 850 mm
Dielectric above table: 410 mm
Max. workpiece weight: 3,000 kg
T-slots: 4 x 12 mm
Distance table–spindle (max./min.): 650 / 235 mm
Slide Head:
Travel (X/Y/Z): 900 / 680 / 415 mm
Resolution X–Y–Z: 0.001 mm
Resolution C: 0.001°
Rapid traverse speed: 2,000 mm/min
Electrode weight without rotation: 100 kg
Electrode weight with rotation: 15 kg
Dielectric System:
Capacity: 800 liters
Paper candle filters: 4 pcs
Generator (mobile):
Dimensions (H x W x D): 1960 x 600 x 920 mm
Weight: 300 kg
Rated current: 60 Amp
Connected load: 15 kVA
Also included:
CO₂ fire suppression system by Kraft & Bauer
Cooler
Condition
Used, well-maintained
Njdpexrcpcsfx Aflelh
Machine is disassembled
Electrode changer defective
Machine was operational until disassembly
Machine must be loaded and collected in 49393 Lohne.
Oglas je automatski preveden. Moguće su greške u prijevodu.
