5-osna dubokobušeća glodalica

AUERBACH AX2 TLF

AUERBACH AX2 TLF

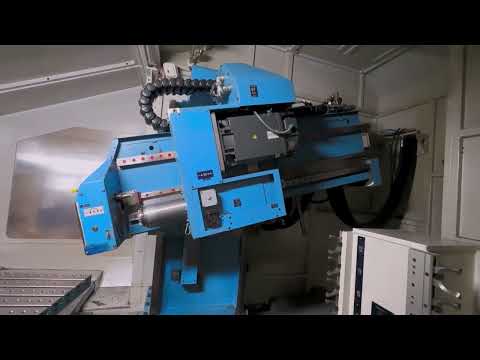

5-Axis Deep Hole Drilling and Milling Machine

Year of manufacture: 2017
Control: HEIDENHAIN TNC 640
Machine number: 044 – 014
Travel distances: X – 1,000 mm / Y – 800 mm / Z – 800 mm
W-axis +15°/-30° / B-axis 360,000°

Equipment:
5 CNC axes: X – Y – Z – W – B
Direct linear measuring system
Digital AC drives
Spindle: SK 40 with 12 kW
Spindle speed range: 60 – 6,000 rpm
Drilling diameter: 3 – 28 mm
Drilling depth in a single stroke up to 1,000 mm
Milling capacity: 150 cm³/min.
NC rotary table, 360,000 degrees
Size: 1,000 mm x 1,000 mm, loadable up to 5 tons
Version with Hirschmann zero-point clamping system
Numerically controlled (NC) swiveling of the deep drilling/milling unit (W axis) +15°/-30°

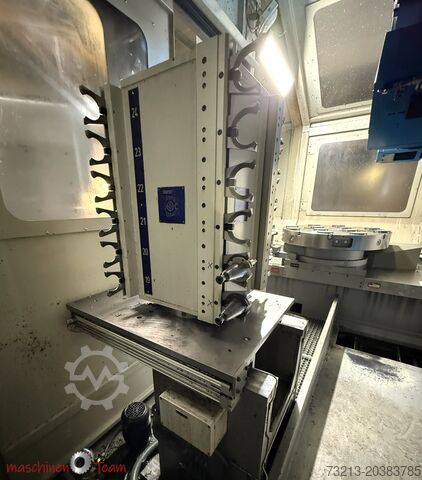

Automatic tool changer for 24 tools
Internal coolant supply
High-pressure coolant system, 1,200 liters, for deep hole drilling oil up to 140 bar
Paper belt filter system
SIEMENS fire suppression system
Fire protection equipment
Spindle cooling
Nledpjxrcbljfx Afljh
Oil temperature control
3D probe HEXAGON
Tool measurement RENISHAW
Electronic handwheel
OPT kinematics
Chip conveyor
Coolant pressure and flow monitoring
Collision and vibration monitoring
Feed monitoring
Coolant pistol
MONTRONIX machine airbag
Oil mist extraction
Walkable full machine enclosure with roof and crane loading opening
2 clamping plates

Included in delivery:
Operating manual/documentation / machine parameters on USB stick

Equipment, technical data, manufacturer brochure & foundation plan – see PDF. Illustration, content, and information are non-binding and without guarantee.

All other accessories visible in the photos and videos are not included in the scope of delivery and therefore do not form part of this sale. The scope of delivery only includes the accessories explicitly listed here, in the order confirmation, and the invoice.

EXW (Ex Works) D-Jena
Plus costs for disassembly, removal, and loading onto truck: net €7,500
Packaging not included
Delivery time: immediate
Subject to prior sale / Payment due immediately upon conclusion of purchase
