Panel Saw

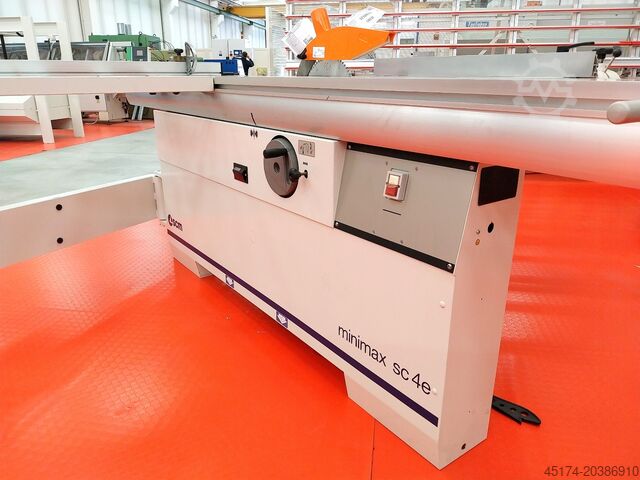

SCM MINIMAX SC 4/E

Code: 0232
Brand: SCM
Model: MINIMAX SC 4/E - CE Standard

Panel saw with tilting blade and scoring unit for precise cutting of panels, furniture, custom-made furnishings, window frames , wooden doors, joinery, plastics, composite materials and various other items - CE Standard - Year 2022

Technical data:
Saw unit consisting of a powerful closed-ring cast iron structure
Blade inclination 0-45°
Max blade diameter with mounted scoring unit mm 315 - F 30
Max blade projection from the table at 90° mm 100
Max blade projection from the table at 45° mm 70
Aluminium carriage length mm 2600
Scoring unit blade diameter mm 100 F 20
Blade rotation speed 3800 rpm
Blade motor power Kw 4
Nedpfx Afsxrgc Telolh
Scoring unit motor power Kw 0,5
Cutting width with parallel guide mm 900
Saw guide unit with micrometric rack adjustment
Squaring frame complete with front roller
Telescopic squaring ruler with 2 reversible stops
Suction port diameter mm 120
Suction port diameter on protective hood mm 60
Overall dimensions of assembled machine mm 3000 x 3100 x 1000 h
Overall dimensions for transport mm 3000 x 1500 x 1200 h
Weight kg 530
