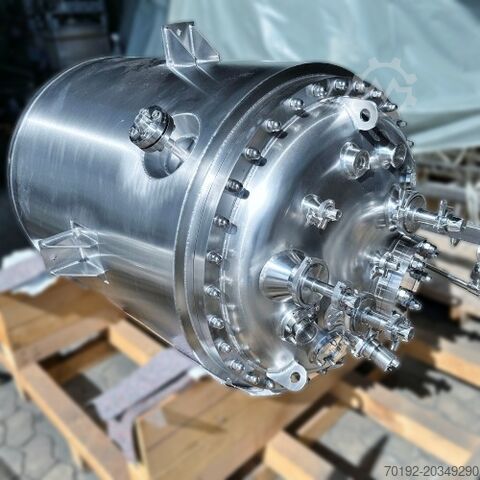

Nekorišteni 500-litarski grijano/hladni tlačni rezervoar sa magnetskim mješačem, Aisi 904L

Waldner 15886

Location: Bremen
Condition: unused
Volume: 500 liters
Tank

Max. operating temperature (tank): 150°C

Max. overpressure: 6.0 bar
Vacuum: 1.0 bar
Tank

Specific weight of medium (t/m³): 1.2 t/m³
Bottom: dished end

Top: bolted lid
Design: suspended
Tank

Support type: bracket feet

Heating/cooling: available
Double jacket volume: 88.0 liters
Max. permitted operating overpressure: 10.0 bar
Heating/cooling jacket

Max. permitted operating vacuum (double jacket/tube space): 1.0 bar

Max. permitted operating temperature: 150°C
Cylindrical temperature control: half-pipe coil
Insulation: present
Lhodpfx Aexqanmeflon
Insulation

Insulation jacket: hermetically welded
Jacket material: stainless steel
Insulation thickness: 50 mm

Internal diameter: 780 mm
External diameter: 960 mm
Cylindrical height: 1,015 mm
Technical data / dimensions

Bottom wall thickness: 6.1 mm

Cylinder wall thickness: 8.9 mm
Technical data / dimensions

Top wall thickness: 4.3 mm

Year built: 2018
Technical documents: drawing, TÜV certificates, acceptance certificate, CE marking and declaration of conformity, operating manual
Features

Manhole/dome: handhole

Nameplate:
Features: spray head, crane lugs
Features

Outlet: available

Remarks: Complete documentation according to pharmaceutical industry standards included in the scope of delivery; the apparatus was manufactured for a global pharmaceutical company but never commissioned; handhole with sight glass, diameter: 285 mm
Product contact material: V4A 1.4539 (AISI316)
Agitator

Agitator manufacturer: Zeta GmbH

Power: 0.37 kW
Speed: 408 rpm
Agitator: magnetic agitator
Agitator

Voltage: 230/400 V
Agitator position: on the bottom
Agitator features: magnetic agitator, presumably speed adjustable via an external controller (not included) in the range 75 - 500 rpm
